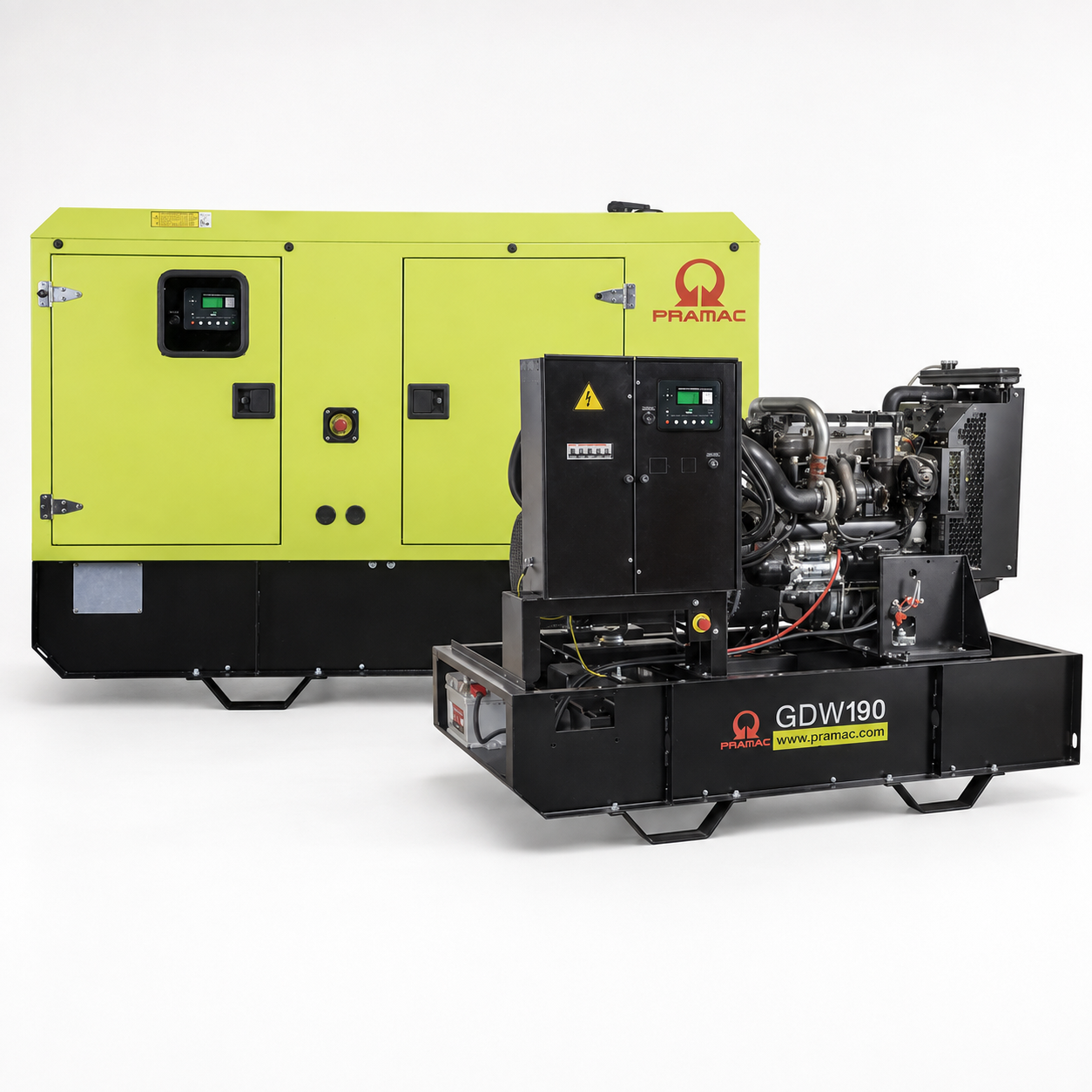

Pramac GDW190I/FNE | 153kW Diesel Generator | Three-Phase | FPT Engine

The Pramac GDW190I/FNE is a powerful three-phase diesel generator delivering 190.6kVA / 152.5kW standby power and 172.9kVA / 138.3kW prime power. It combines a turbocharged FPT engine with a brushless Mecc Alte alternator for dependable commercial, industrial and emergency backup power.



Pramac GDW190I/FNE 190.6kVA / 152.5kW Three-Phase Diesel Generator

The Pramac GDW190I/FNE Three-Phase Diesel Generator is engineered to provide dependable power for demanding commercial, industrial and standby applications. It is suitable for factories, warehouses, construction projects, agricultural operations, commercial premises and emergency backup installations.

The GDW190I/FNE delivers 190.6kVA / 152.5kW of Emergency Standby Power (ESP) and 172.9kVA / 138.3kW of Prime Power (PRP). Its 400/230V three-phase output provides the capacity required to support industrial machinery, electrical equipment and commercial power systems.

At the heart of the generator is an FPT NEF67TM4 six-cylinder diesel engine with a 6,700cc displacement. The engine is turbocharged and water-cooled, providing reliable performance at a nominal operating speed of 1,500rpm.

A mechanical speed governor helps maintain consistent engine operation, while the electric starting system and 12V electrical circuit provide straightforward and dependable starting.

The FPT engine is paired with a Mecc Alte ECO38 1S4 C brushless alternator. This four-pole alternator features Class H insulation, IP23 protection and an efficiency rating of 92.4% at full load. It delivers stable three-phase electrical output at 50Hz with a 0.8 power factor.

Fuel consumption is approximately 27.58 litres per hour at 75% prime power and 36.28 litres per hour at 100% prime power. Optional fuel tanks ranging from 335 to 1,325 litres allow the generator’s operating time to be configured around the requirements of the installation.

The standard canopy version features a weather-resistant enclosure manufactured from galvanised sheet metal. High-quality soundproofing materials and a residential silencer help reduce operating noise, while large lateral doors with key-lockable handles provide convenient access for servicing and maintenance.

The standard canopy has a stated sound pressure level of approximately 67dB(A) at seven metres. For noise-sensitive installations, the Extra Silent canopy reduces the stated sound pressure level to approximately 64dB(A) at seven metres.

Manual Remote Start, Automatic Control and Modular Parallel control-panel options are available. These allow the generator to be configured for manual operation, automatic mains-failure backup or parallel operation involving multiple generating sets.

Features & Benefits

• 190.6kVA / 152.5kW emergency standby power
• 172.9kVA / 138.3kW prime power
• Stable 400/230V three-phase output
• FPT NEF67TM4 diesel engine
• Six-cylinder in-line engine configuration
• 6,700cc engine displacement
• Turbocharged aspiration
• Water-cooled engine system
• Mechanical speed governor
• Electric starting system
• Mecc Alte ECO38 1S4 C alternator
• Brushless four-pole alternator design
• Class H alternator insulation
• IP23 alternator protection
• 92.4% alternator efficiency at full load
• Optional fuel tanks from 335 to 1,325 litres
• Standard and Extra Silent canopies available
• Weather-resistant galvanised steel enclosure
• Large, lockable service-access doors
• Manual, automatic and parallel control options
• G2 load-acceptance classification under ISO 8528-5
• Suitable for standby and prime-power applications

Technical Specifications

• Emergency Standby Power (ESP): 190.6kVA / 152.5kW
• Prime Power (PRP): 172.9kVA / 138.3kW
• Voltage: 400/230V
• Frequency: 50Hz
• Power Factor: 0.8
• Phases: Three-phase
• Maximum Current: 275A
• Nominal Current: 250A
• Circuit Breaker: 400A
• Fuel Type: Diesel
• Engine Manufacturer: FPT
• Engine Model: NEF67TM4
• Exhaust Emissions Level: Non-emission certified
• Engine Displacement: 6,700cc
• Cylinders: Six in-line
• Aspiration: Turbocharged
• Cooling System: Water-cooled
• Nominal Engine Speed: 1,500rpm
• Speed Governor: Mechanical
• Starting System: Electric
• Engine Electrical System: 12V
• Alternator Manufacturer: Mecc Alte
• Alternator Model: ECO38 1S4 C
• Alternator Type: Brushless
• Alternator Poles: Four
• Alternator Protection: IP23
• Insulation Class: Class H
• Fuel Consumption at 75% PRP: 27.58L/h
• Fuel Consumption at 100% PRP: 36.28L/h
• Open Version Dimensions: 2,612 × 1,100 × 1,707mm
• Open Version Weight: 1,522kg
• Canopy Version Dimensions: 3,090 × 1,100 × 1,852mm
• Canopy Version Weight: 1,874kg
• Canopy Noise at 7m: 67dB(A)
• Extra Silent Canopy Dimensions: 3,090 × 1,100 × 2,505mm
• Extra Silent Canopy Weight: 2,168kg
• Extra Silent Canopy Noise at 7m: 64dB(A)
