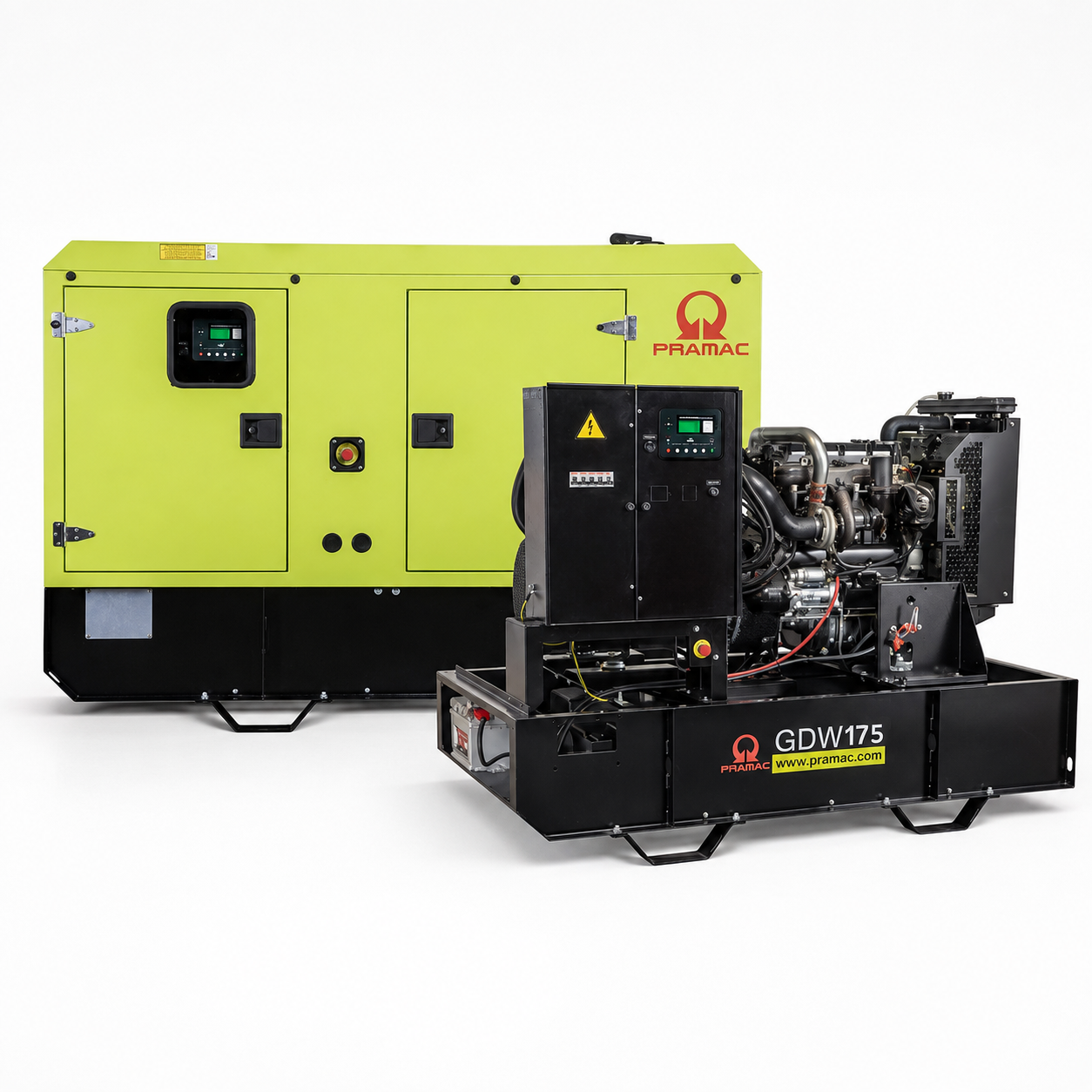

Pramac GDW175I/FS2 | 141kW Diesel Generator | Three-Phase | FPT Engine

The Pramac GDW175I/FS2 is a powerful three-phase diesel generator delivering 176.5kVA / 141.2kW standby power and 159.9kVA / 127.9kW prime power. It combines a turbocharged FPT Stage II engine with a brushless Mecc Alte alternator for dependable industrial, commercial and emergency backup power.



Pramac GDW175I/FS2 176.5kVA / 141.2kW Three-Phase Diesel Generator

The Pramac GDW175I/FS2 Three-Phase Diesel Generator is engineered to provide reliable power for demanding commercial, industrial and standby applications. It is suitable for factories, warehouses, construction projects, agricultural operations, commercial premises and emergency backup installations.

The GDW175I/FS2 delivers 176.5kVA / 141.2kW of Emergency Standby Power (ESP) and 159.9kVA / 127.9kW of Prime Power (PRP). Its 400/230V three-phase output provides the capacity required to support industrial machinery, electrical equipment and commercial power systems.

At the heart of the generator is an FPT NEF67TM3A six-cylinder diesel engine with a 6,700cc displacement. The engine is turbocharged and aftercooled, with a water-cooled system that helps maintain a controlled operating temperature during prolonged use.

The engine has a Stage II exhaust emissions classification and operates at a nominal speed of 1,500rpm. A mechanical speed governor helps maintain consistent performance, while the electric starting system and 12V electrical circuit provide straightforward and dependable starting.

The FPT engine is paired with a Mecc Alte ECP34 2L4 C brushless alternator. This single-bearing, four-pole alternator features Class H insulation, IP23 protection and an efficiency rating of 92.9% at full load. It delivers stable three-phase power at 50Hz with a 0.8 power factor.

Fuel consumption is approximately 27.36 litres per hour at 75% prime power and 36.13 litres per hour at 100% prime power. Optional fuel tanks ranging from 335 to 1,325 litres allow the generator’s operating time to be configured around the requirements of the installation.

The standard canopy version features a weather-resistant enclosure manufactured from galvanised sheet metal. High-quality soundproofing materials and a residential silencer help reduce noise emissions, while large lateral doors with key-lockable handles provide convenient access for servicing and maintenance.

The standard canopy has a stated sound pressure level of approximately 68dB(A) at seven metres. For noise-sensitive installations, the Extra Silent canopy reduces the stated sound pressure level to approximately 66dB(A) at seven metres.

Manual Remote Start, Automatic Control and Modular Parallel control-panel options are available. These allow the generator to be configured for manual operation, automatic mains-failure backup or parallel operation involving multiple generating sets.

Features & Benefits

• 176.5kVA / 141.2kW emergency standby power
• 159.9kVA / 127.9kW prime power
• Stable 400/230V three-phase output
• FPT NEF67TM3A diesel engine
• Stage II exhaust emissions classification
• Six-cylinder in-line engine configuration
• 6,700cc engine displacement
• Turbocharged and aftercooled aspiration
• Water-cooled engine system
• Mechanical speed governor
• Electric starting system
• Mecc Alte ECP34 2L4 C alternator
• Brushless, single-bearing alternator design
• Class H alternator insulation
• IP23 alternator protection
• 92.9% alternator efficiency at full load
• Optional fuel tanks from 335 to 1,325 litres
• Standard and Extra Silent canopies available
• Weather-resistant galvanised steel enclosure
• Large, lockable service-access doors
• Manual, automatic and parallel control options
• G2 load-acceptance classification under ISO 8528-5
• Suitable for standby and prime-power applications

Technical Specifications

• Emergency Standby Power (ESP): 176.5kVA / 141.2kW
• Prime Power (PRP): 159.9kVA / 127.9kW
• Voltage: 400/230V
• Frequency: 50Hz
• Power Factor: 0.8
• Phases: Three-phase
• Maximum Current: 255A
• Nominal Current: 231A
• Circuit Breaker: 250A
• Fuel Type: Diesel
• Engine Manufacturer: FPT
• Engine Model: NEF67TM3A
• Exhaust Emissions Level: Stage II
• Engine Displacement: 6,700cc
• Cylinders: Six in-line
• Aspiration: Turbocharged and aftercooled
• Cooling System: Water-cooled
• Nominal Engine Speed: 1,500rpm
• Speed Governor: Mechanical
• Starting System: Electric
• Engine Electrical System: 12V
• Alternator Manufacturer: Mecc Alte
• Alternator Model: ECP34 2L4 C
• Alternator Type: Brushless
• Alternator Poles: Four
• Alternator Protection: IP23
• Insulation Class: Class H
• Fuel Consumption at 75% PRP: 27.36L/h
• Fuel Consumption at 100% PRP: 36.13L/h
• Open Version Dimensions: 2,612 × 1,100 × 1,707mm
• Open Version Weight: 1,432kg
• Canopy Version Dimensions: 3,090 × 1,100 × 1,852mm
• Canopy Version Weight: 1,784kg
• Canopy Noise at 7m: 68dB(A)
• Extra Silent Canopy Dimensions: 3,090 × 1,100 × 2,505mm
• Extra Silent Canopy Weight: 2,078kg
• Extra Silent Canopy Noise at 7m: 66dB(A)

Need Assistance?

If you’re unsure whether the Pramac GDW175I/FS2 176.5kVA / 141.2kW Three-Phase Diesel Generator is right for your application, contact the Leader Pro team. We’ll be happy to help you select the ideal generator, fuel tank and control-panel configuration for your power requirements.
